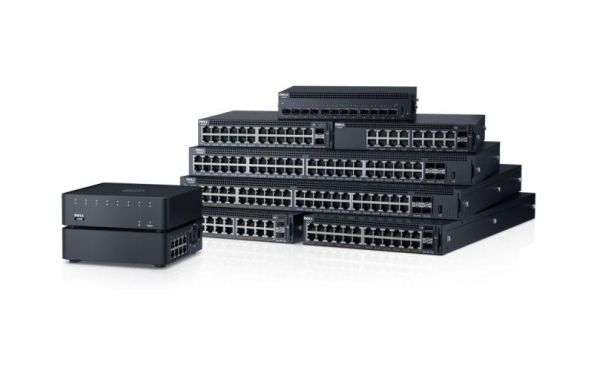

N1124P-ON - Dell Networking N1124P-ON 24-Ports 1GbE 190W PoE+ 4-Ports 10GbE SFP+ Switch

Name: N1124P-ON - Dell Networking N1124P-ON 24-Ports 1GbE 190W PoE+ 4-Ports 10GbE SFP+ Switch
SKU: N1124P-ON
Availability: OutOfStock
Rating: 4.7 (901 reviews)

Mfr Part#:

N1124P-ON | See more Network Switches

Manufacturer: Dell

Call For price

Price Match Request

Seeking a large quantity of N1124P-ON, or have a target price in mind? Contact us at (855) 483-7810 or simply Request a Bulk Quote. Our sales team will promptly respond with a discounted price tailored to your needs.

Payment

Expert team support

Chat | Email

+1-855-483-7810

We accept POs from fortune 1000 companies, government agencies, defense, schools and hospitals.

Free ground shipping within United States

Fast & Free Shipping on all Orders
Customer Support Contact Us
Lowest Price
?

How can we provide the cheapest price of ?

Through digital management and global bulk purchases directly from original manufacturers and authorized suppliers, we guarantee quality and authenticity at the most affordable price.

Guarantee
Secure Online Payments
Easy Installments With No Interest

Free Delivery

For all oders over $99

90 Days Return

If goods have problems

Secure Payment

100% secure payment

24/7 Support

Dedicated support

Overview

DELL N1124P-ON network switch Managed L2 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U Black

Managed L2

10G support
MAC address table: 16000 entries Switching capacity: 128 Gbit/s
4000 Access Control List (ACL)
1U Rack mounting Stackable
Power supply included Power over Ethernet (PoE)

Description

About DELL N1124P-ON, Managed, L2, Gigabit Ethernet (10/100/1000), Power over Ethernet (PoE), Rack mounting, 1U

DELL N1124P-ON. Switch type: Managed, Switch layer: L2. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 24, Console port: Micro-USB. Full duplex. MAC address table: 16000 entries, Switching capacity: 128 Gbit/s. Networking standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1s, IEEE 802.1v, IEEE 802.1w, IEEE.... Power connector: AC-in jack. Power over Ethernet (PoE). Rack mounting, Form factor: 1U

Specification

Overview

Condition:

Refurbished

Manufacturer:

DELL

Stock:

In Stock.

Stock updated on:

2024-01-03

Management features

Switch type

Managed

Switch layer

ARP inspection

Yes

MIB support

SMIv1/SMIv2, IP, TCP, UDP

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity

Basic switching RJ-45 Ethernet ports type

Gigabit Ethernet (10/100/1000)

SFP+ module slots quantity

Console port

Micro-USB

Power connector

AC-in jack

Network

Networking standards

IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1s, IEEE 802.1v, IEEE 802.1w, IEEE 802.1x, IEEE 802.2, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ac, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z

10G support

Yes

Port mirroring

Yes

Full duplex

Yes

Flow control support

Yes

Link aggregation

Yes

Broadcast storm control

Yes

Auto MDI/MDI-X

Yes

Spanning tree protocol

Yes

Auto-negotiation

Yes

VLAN support

Yes

Virtual LAN features

Private VLAN, Protocol-based VLAN

Number of VLANs

512

Data transmission

Switching capacity

128 Gbit/s

Forwarding rate

96 Mpps

MAC address table

16000 entries

Store-and-forward

Yes

Packet buffer memory

2 MB

Security

Access Control List (ACL)

Yes

Access Control List (ACL) rules

4000

IGMP snooping

Yes

Security algorithms

802.1x RADIUS, SSH, SSL/TLS

Authentication type

RADIUS

Multicast features

Multicast support

Yes

Design

Rack mounting

Yes

Stackable

Yes

Form factor

Product colour

Black

Performance

Memory type

Flash

Internal memory

1000 MB

Flash memory

1000 MB

Firmware upgradeable

Yes

Power

Power supply included

Yes

Number of power supply units

AC input voltage

100 - 240 V

AC input frequency

47/63 Hz

Power consumption (max)

249.6 W

Power over Ethernet (PoE)

Power over Ethernet (PoE)

Yes

Power over Ethernet plus (PoE+) ports quantity

Power over Ethernet (PoE) power per port

15.93 W

Total Power over Ethernet (PoE) budget

190 W

Operational conditions

Operating temperature (T-T)

0 - 45 °C

Storage temperature (T-T)

-40 - 65 °C

Operating relative humidity (H-H)

0 - 95%

Storage relative humidity (H-H)

0 - 85%

Heat dissipation

851.66 BTU/h

Weight & dimensions

Width

431.8 mm

Depth

254 mm

Height

44.5 mm

Weight

3.78 kg

Sustainability

Sustainability certificates

RoHS

Other features

Power supply

250 W
