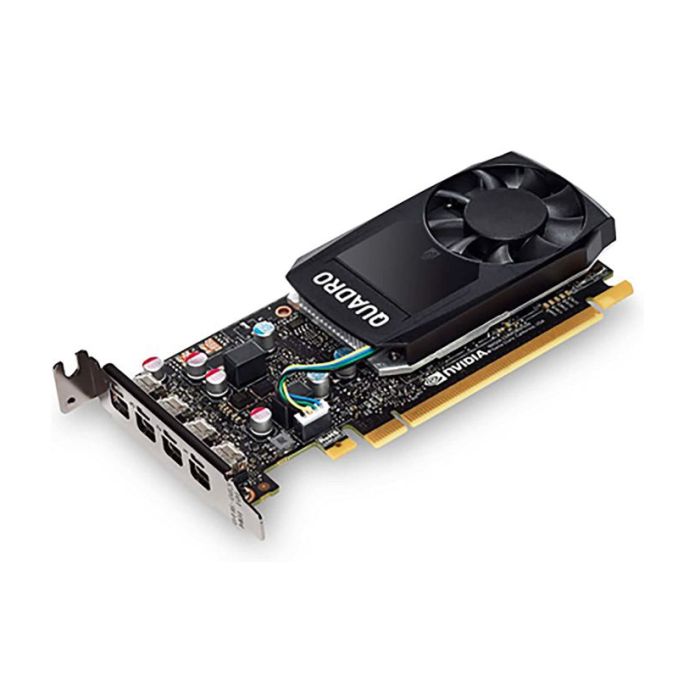

4X67A11584 - Lenovo ThinkSystem NVIDIA Quadro P620 2GB PCIe Active GPU

Entry-level NVIDIA Quadro P620 2GB GDDR5 PCIe workstation-class GPU for Lenovo ThinkSystem servers. Supports 4x 4K displays via Mini DisplayPort. Single-slot, active cooling.

The Lenovo ThinkSystem NVIDIA Quadro P620 2GB PCIe Active GPU (MPN: 4X67A11584) is a professional, entry-level graphics adapter designed for installation in supported Lenovo ThinkSystem rack and tower servers. Built on the NVIDIA Pascal architecture, it is intended to provide graphics acceleration and multi-display output for server-based workstation, visualization, and remote graphics workloads rather than gaming. It is a single-slot, low-profile-capable, actively cooled card that connects via PCI Express 3.0 x16 and supports up to four displays simultaneously through Mini DisplayPort 1.4 outputs. Lenovo markets this GPU as a server option (feature code B31D) for select ThinkSystem platforms, primarily suited to basic 2D/3D graphics, CAD viewing, and video wall/multi-monitor output scenarios in a data center environment.

• Manufacturer: Lenovo
• Product Family: ThinkSystem
• Product Series: GPU Adapters / Options
• Model: NVIDIA Quadro P620
• Lenovo Part Number (MPN): 4X67A11584
• Lenovo Feature Code: B31D
• Product Type: PCIe Graphics Processing Unit (GPU) server option
• GPU Architecture: NVIDIA Pascal
• GPU Memory: 2 GB GDDR5
• Memory Interface: 128-bit
• Memory Bandwidth: Up to 80 GB/s
• NVIDIA CUDA Cores: 512
• System Interface: PCI Express 3.0 x16
• Max Power Consumption: 40 W
• Thermal Solution: Active
• Form Factor: 2.713" H x 5.7" L, Single Slot, Low Profile capable
• Display Connectors: 4x Mini DisplayPort 1.4
• Max Simultaneous Displays: 4 direct, 4x DisplayPort 1.4 Multi-Stream
• Display Resolution: 4x 4096x2160 @ 60 Hz; 4x 5120x2880 @ 60Hz
• Graphics APIs: Shader Model 5.1, OpenGL 4.5, DirectX 12.0, Vulkan 1.0
• Compute APIs: CUDA, DirectCompute, OpenCL
• Controlled GPU (export status): No (per Lenovo Press documentation)
• Operating System Support (server-dependent): Microsoft Windows Server 2016/2019/2022 (and Windows Server 2025 on select newer platforms); Red Hat Enterprise Linux; SUSE Linux Enterprise; Ubuntu — exact OS support varies by host server (see ServerProven)
• Management: Managed via host ThinkSystem server's systems management (e.g., Lenovo XClarity); no GPU-specific management spec published
• Warranty: Follows the warranty terms of the host ThinkSystem server; no standalone warranty period published by Lenovo for this part

• NVIDIA Pascal architecture GPU with 512 CUDA cores
• 2 GB dedicated GDDR5 graphics memory
• Single-slot, active-cooled design for compact server chassis
• Four Mini DisplayPort 1.4 outputs for multi-monitor setups
• Supports up to four displays at 4K (4096x2160) @ 60 Hz simultaneously
• PCI Express 3.0 x16 host interface for broad server compatibility
• Low power consumption (40 W max) suited to dense server deployments
• Support for CUDA, DirectCompute, and OpenCL compute APIs
• Compatible with Windows Server and select Linux distributions (server-dependent)
• Officially listed and validated by Lenovo for specific ThinkSystem server models

This GPU is used to add graphics processing and multi-display output capability to compatible Lenovo ThinkSystem servers.

• Server-based CAD/2D-3D visualization workloads
• Multi-monitor digital signage or video wall driving from a server
• Basic remote graphics/virtual desktop infrastructure (VDI) acceleration
• Entry-level professional graphics rendering in a data center environment
• Adding display output capability to headless or rack-mounted servers

• Adds professional GPU output to ThinkSystem servers
• Drives up to 4 displays from one card
• Low 40W power draw suits dense deployments
• Compact single-slot design saves chassis space
• Actively cooled for reliable server operation
• Officially validated for select ThinkSystem models

• Form Factor: Single Slot, Low Profile capable
• Dimensions: 2.713" (H) x 5.7" (L) (per NVIDIA reference datasheet; Lenovo-branded card dimensions not separately published)
• Weight: Not specified by manufacturer
• Cooling: Active (fan-based)

Per Lenovo's official ServerProven compatibility tool, this GPU (4X67A11584) is validated for the following ThinkSystem servers:

• ThinkSystem SR250
• ThinkSystem SR630 (including SP2 and V2)
• ThinkSystem SR635
• ThinkSystem SR645
• ThinkSystem SR650 (including SP2 and V2)
• ThinkSystem SR655
• ThinkSystem SR665
• ThinkSystem ST250
• ThinkSystem ST50
• ThinkSystem ST550 (including SP2)
• ThinkSystem ST650 V2

Note: Newer ThinkSystem V3/V4 generation servers (per Lenovo Press LP0768, updated June 30, 2026) do not list official support for this GPU.
