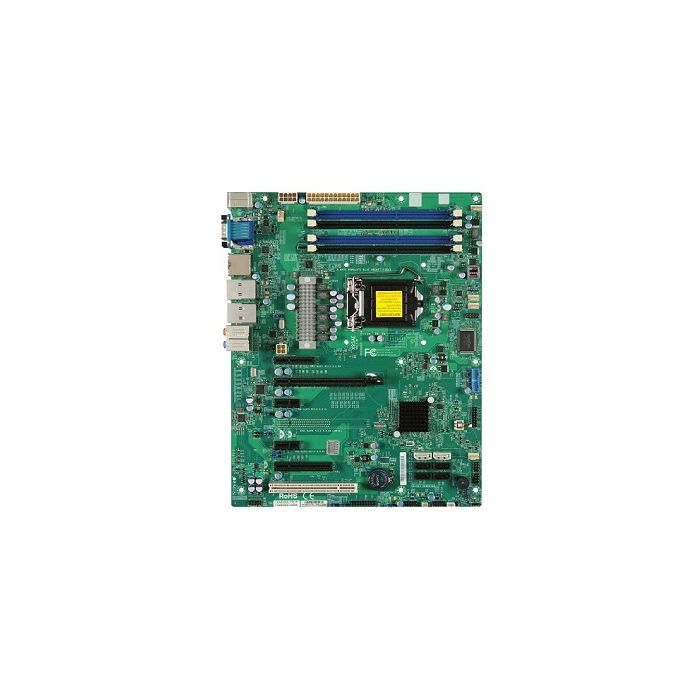

MBD-X9SAE-V-O - SuperMicro ATX System Board (Motherboard) with Intel C216 Chipset CPU
MBD-X9SAE-V-O - SuperMicro ATX System Board (Motherboard) with Intel C216 Chipset CPU
Mfr Part#:
Availabilty: In stock
Condition:
Refurbished
GTIN:
0672042119455
672042119455
Manufacturer:
SuperMicro
Seeking a large quantity of MBD-X9SAE-V-O, or have a target price in mind? Contact us at (855) 483-7810 or simply Request a Bulk Quote. Our sales team will promptly respond with a discounted price tailored to your needs.
PAYMENT
Expert team support
We accept POs from fortune 1000 companies, government agencies, defense, schools and hospitals.
Free ground shipping within United States-
Fast & Free Shipping On All Orders
-
Customer Support Contact Us
-
Lowest Price?Guarantee
How can we provide the cheapest price of ?
Through digital management and global bulk purchases directly from original manufacturers and authorized suppliers, we guarantee quality and authenticity at the most affordable price.
-
Secure Online Payments
-
Easy Installments With No Interest
Save 5%
Quote
ContactSupermicro MBD-X9SAE-V-O motherboard Intel® C216 LGA 1155 (Socket H2) ATX
ATX, Intel C216, Intel Xeon/Core i7/i5/i3/Pentium/Celeron, Socket H2 (LGA 1155), 4x UDIMM DDR3 (up to 32GB, 1600MHz), SATA2/3, RealTek ALC889, USB 3.0/2.0, DOM, 2x HDMI, VGA, Dual LAN via Intel 82579LM + 82574L , PCI-E x8/x4/x1, PCI-32, UEFI AMI BIOS
- Intel LGA 1155 (Socket H2)
- ATX Intel® C216 7.1 channels
- DDR3-SDRAM ECC Non-ECC Maximum internal memory: 32 GB
- SATA II, SATA III
- BIOS type: UEFI AMI 16 Mbit ACPI version: 4.0
- Gigabit Ethernet
About Supermicro MBD-X9SAE-V-O, Intel, LGA 1155 (Socket H2), E3-1200, DDR3-SDRAM, 32 GB, 1.5 V
Supermicro MBD-X9SAE-V-O. Processor manufacturer: Intel, Processor socket: LGA 1155 (Socket H2), Intel Xeon series: E3-1200. Supported memory types: DDR3-SDRAM, Maximum internal memory: 32 GB, Memory voltage: 1.5 V. Supported storage drive interfaces: SATA II, SATA III, RAID levels: 0, 1, 5, 10. Ethernet interface type: Gigabit Ethernet, LAN controller: Intel® 82574L, Intel® 82579LM. Motherboard form factor: ATX, Motherboard chipset: Intel® C216, Audio output channels: 7.1 channels
Supermicro motherboards based on the Intel C216/C204/C202 PCH chipset with Intel® 2nd Generation Core™ i3 processor series and new Generation Intel® Xeon® processor E3-1200 v2 family support in the LGA 1155 socket. With features that include support for PCI-E 3.0, up to 32 GB DDR3 memory, and integrated IPMI 2.0 support (optional), these boards deliver the highest performance for 1U form factor.
Customer Questions
Overview
Condition:
Refurbished
Manufacturer:
SuperMicro
Stock:
In Stock
Processor
Processor manufacturer
Intel
Processor socket
LGA 1155 (Socket H2)
Intel Xeon series
E3-1200
Memory
Supported memory types
DDR3-SDRAM
Memory voltage
1.5 V
ECC
Yes
Non-ECC
Yes
Supported memory clock speeds
1333,1600 MHz
Maximum internal memory
32 GB
Storage controllers
Supported storage drive interfaces
SATA II, SATA III
RAID levels
0, 1, 5, 10
Internal I/O
USB 2.0 connectors
4
Number of SATA III connectors
2
Number of SATA II connectors
4
Power fan connector
Yes
TPM connector
Yes
Serial port headers
1
Rear panel I/O ports
USB 2.0 ports quantity
4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
2
Ethernet LAN (RJ-45) ports
2
VGA (D-Sub) ports quantity
1
Serial ports quantity
1
Network
Ethernet LAN
Yes
Ethernet interface type
Gigabit Ethernet
LAN controller
Intel® 82574L, Intel® 82579LM
Wi-Fi
No
Features
Motherboard chipset
Intel® C216
Audio output channels
7.1 channels
Motherboard form factor
ATX
Expansion slots
PCI Express x1 slots
2
PCI Express x4 slots
2
PCI Express x8 slots
2
PCI slots
1
PCI Express slots version
2.0, 3.0
BIOS
BIOS type
UEFI AMI
BIOS memory size
16 Mbit
ACPI version
4.0
Processor special features
Trusted Platform Module (TPM)
Yes
Operational conditions
Storage temperature (T-T)
-40 - 70 °C
Operating temperature (T-T)
10 - 35 °C
Operating relative humidity (H-H)
8 - 90%
Storage relative humidity (H-H)
5 - 95%
Weight & dimensions
Width
304.8 mm
Depth
243.8 mm
Packaging content
Bundled software
SuperDoctor III
Watch Dog
NMI
Other features
Supported UDIMM clock speeds
1333,1600 MHz
Supported UDIMM module capacity
1GB, 2GB, 4GB, 8GB
Maximum UDIMM memory
32 GB
Number of DIMM slots
4
Number of processors supported
1
PCI Express slots quantity
6
Technical details
Sustainability certificates
RoHS
