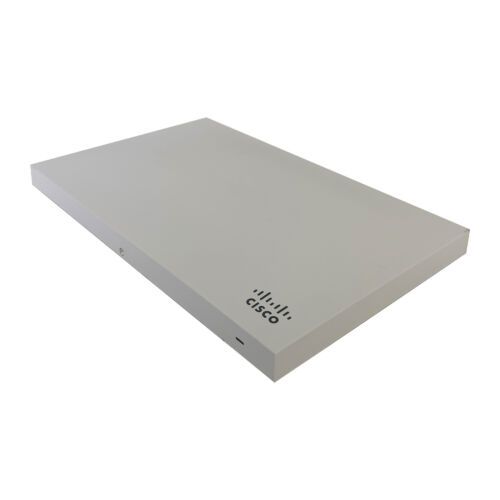

MR32-HW - Cisco Meraki MR32 Cloud Managed Wireless Access Point

About Cisco Meraki MR32, 10,100,1000 Mbit/s, 2.412 - 2.484, 5.15 - 5.25, 5.725 - 5.825 GHz, IEEE 802.11n, AES, TKIP, WEP, WPA, WPA-PSK, WPA2, WPA2-TKIP, Ethernet (RJ-45), 12 V

Cisco Meraki MR32. Ethernet LAN data rates: 10,100,1000 Mbit/s, Frequency band: 2.412 - 2.484, 5.15 - 5.25, 5.725 - 5.825 GHz, Networking standards: IEEE 802.11n. Security algorithms: AES, TKIP, WEP, WPA, WPA-PSK, WPA2, WPA2-TKIP. WAN connection: Ethernet (RJ-45). AC input voltage: 12 V, Power consumption (typical): 13.87 W. Width: 253.4 mm, Depth: 155.8 mm, Height: 37.1 mm

Ideal use cases
- Performance-critical wireless LANs
- High-density environments

Hardware features
- 3 radios: 2.4 and 5 GHz, dual-band WIDS/WIPS
- 2-stream 802.11ac and 802.11n, up to 1.2 Gbps
- Integrated Bluetooth low energy radio
- Gigabit Ethernet port
- PoE: Full functionality with 802.3af
- AC adapter available

Cloud management
- Network-wide visibility and control
- Self-provisioning for rapid deployment
- Automatic reporting
- Seamless firmware updates

Enterprise security
- 802.1X and native Active Directory integration
- Air Marshal: real-time WIPS with forensics
- Stateful Layer 3-7 firewall
- Identity-based group policies
- Built-in antivirus scan (NAC)

Guest access
- 1-click secure guest access
- Guest isolation firewall
- Customizable splash pages
- Integrated Facebook login

RF optimization
- Dual-concurrent, 2-stream MIMO radios
- Radios optimized for rate-vs-range performance
- Third radio dedicated to security and RF management
- Built-in real-time RF spectrum view
- Cloud-based automatic RF optimization

Layer 7 traffic shaping
- Classify hundreds of applications automatically
- Create per-application bandwidth limits
- Prioritize productivity apps
- Restrict or block recreational traffic

CMX location analytics
- Measure visitor capture rate, visit length, and repeat visit rate
- Measure visitor trends over time and compare performance across locations
- Enable location services through integrated iBeacon functionality
