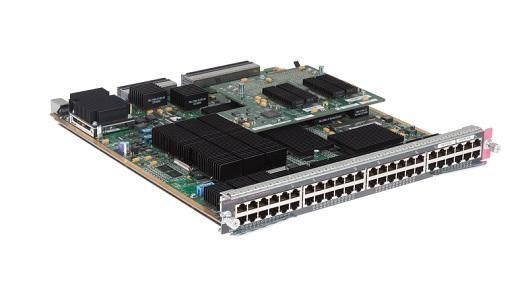

WS-X6748-GE-TX - Cisco Catalyst 6500 48-port 10/100/1000 RJ-45 interface module

About Cisco WS-X6748-GE-TX, Gigabit Ethernet, 10,100,1000 Mbit/s, 10BASE-T, 100BASE-TX, 1000BASE-T, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.3, IEEE 802.3ab, IEEE..., 40 Gbit/s, 1 Gbit/s

Cisco WS-X6748-GE-TX. Ethernet interface type: Gigabit Ethernet, Ethernet LAN data rates: 10,100,1000 Mbit/s, Copper ethernet cabling technology: 10BASE-T, 100BASE-TX, 1000BASE-T. Switching capacity: 40 Gbit/s, Data transfer rate: 1 Gbit/s, Forwarding rate: 30 Mpps. Buffer size per port: 1.3 MB, Compatibility: Cisco Catalyst 6506, Catalyst 6509, Catalyst 6509-NEB-A, Catalyst 6513. Power consumption (typical): 104 W. Safety: UL 1950, CSA-C22.2 No. 950, EN 60950, IEC 950, AS/NZS 3260, IEC 825, EN 60825, 21CFR1040, Electromagnetic compatibility: FCC Part 15 (CFR 47) Class A, VCCI, EN55022, EN55024, CISPR 22, CE marking, AS/NZS 3548

Cisco Catalyst 6500 Series Cisco Express Forwarding 720 10-, 100-, And 1000-MBPS Ethernet-over-Copper Modules
Designed for high-performance enterprise and service provider distribution, core layers, data-center, and Web-hosting applications where voice capability is not required, Cisco Express Forwarding 720 twisted-pair interface modules provide line-rate 10/100/1000 Ethernet forwarding with the following operational advantages (refer to Table 3):

- Forwarding architecture: These modules use the central Cisco Express Forwarding engine located on the supervisor engine; optional field-upgradable Distributed Cisco Express Forwarding daughter cards are available.
- Forwarding performance: These modules forward packets up to 30 Mpps per system; they forward packets up to sustained 48 Mpps per slot for slots equipped with distributed forwarding cards (DFC or DFC3).
- Fabric connection: These modules connect to the switch-fabric channels using dual 20 Gbps switch-fabric channels (40 Gbps total).
- Supervisor engine: These modules work with Supervisor Engine 720.
- Distributed forwarding upgrade option: These modules help enable full locally distributed forwarding; they use an optional (part number WS-F6700-DFC3) upgrade to operate with the Supervisor Engine 720, and they provide optimal interface module performance.
- Slot and chassis requirements: These modules can occupy any slot in the Cisco Catalyst 6506, Catalyst 6509, Catalyst 6509-NEB, or Catalyst 6509-NEB-A; they require slots 9 through 13 when used in the Cisco Catalyst 6513. Cisco Catalyst 6503 support is under consideration for the future (refer to release notes for details).
- Maximum port density per chassis: These modules support up to 384 ports per Cisco Catalyst 6509, up to 240 Cisco Express Forwarding-based ports, and an additional 336 classic or Cisco Express Forwarding 256-based ports per Cisco Catalyst 6513.
