Best High-Wattage PSUs (1200W-1600W) For Future-Proof PC Builds

Choosing a power supply unit (PSU) is super important when building a high-end PC, especially if you plan to add next-gen GPUs in the future. In this blog, we are discussing ultra-performance tier PSUs, specifically the best 1200-watt power supply units and the best 1600-watt power supply units, which allow the headroom needed to power multi-GPU setups or the most demanding single-card configurations. Investing in a high-wattage unit is a smart step for “future-proofing” your system.

Key Terms of Power Supply Units

Understanding the key PSU terminology is essential for choosing properly between a 1200-watt pc power supply and its higher-wattage counterpart. Let’s discuss the key terms of power supply units for better understanding.

1. 80 PLUS Certification

Bronze, Silver, Gold, Platinum, and Titanium ratings indicate how energy efficient a power supply is at different load levels (20%, 50%, and 100%). For example, maintaining 90% efficiency at 50% load requires a 1200-watt Platinum-rated power supply, which is impressive. Higher efficiency means less wasted power as heat, resulting in lower operating temperatures and a quieter system overall, both of which are required for any high-performance system.

2. Modular vs. Non-Modular vs. Semi-Modular

A fully modular power supply unit allows all the cables to be disconnected from the unit, leading to better airflow and more organized cable management in the PC case. You can only use the cables you need. In non-modular power supply units, all the cables are permanently fixed, leading to clutter. Semi-modular power supplies are a middle ground; essential cables like the 24-pin ATX cable are permanently fixed and attached.

3. ATX 3.0 Standard

The ATX 3.0 standard is the latest design specification for PSUs. This feature is especially critical for dealing with the enormous transient power spikes created by GPUs like the RTX 40-series and future cards. An ATX 3.0 compliant power supply unit such as the Seasonic Vertex GX-1200 includes the new 12VHPWR connector. This feature ensures the greatest compatibility and stability with next-gen devices that require high-peak current draws.

4. Single Rail vs. Multi-Rail

This describes how the 12V power gets divvied up. A single-rail PSU delivers the maximum current potential of the unit (e.g., a full 1200W) through one large circuit. In the case of a multi-rail PSU, the 12V line gets split into several different circuits, each with their own over-current protection (OCP). This can be advantageous at high wattages, as multi-rail can protect the PSU from damage, while single-rail simplifies power distribution, making it easier for overclocking.

5. Hold-Up Time

Hold-up time refers to the duration, measured in milliseconds, that the PSU can keep providing power to the system after a sudden loss of AC input. A longer hold-up time, such as typically over 16 ms, guarantees that the PC has sufficient time to perform properly and shutdown safely to protect the hardware and data, considering brief power interruptions.

Comparison Tables of High-Wattage PSUs (1200W-1600W)

1. Side-by-Side Comparison: Best 1200-Watt Power Supply

These 1200W units strike a superb balance of performance, efficiency, and future-ready features like ATX 3.0. The best 1200-watt power supply will provide ample overhead for most high-end gaming rigs.

Quick Comparison:

Most enthusiasts prefer a 1200-watt power supply when using either dual high-end graphics cards or a single flagship GPU paired with a highly overclocked multi-core CPU. 1200-watt platinum power supply options ensure optimum energy efficiency while cutting back heat and operational cost. A strong 1200-watt power supply consumption rating equates to a sustained high-demand load with ease. When you build your next high-powered system, choose the ideal 1200-watt power supply unit with a gold certification for the right balance of price, performance, and efficiency.

2. Side-by-Side Comparison: Best 1600-Watt Power Supply

The best 1600-watt power supply is the definitive choice for extreme performance or future-proofing the most power-hungry configurations. The efficiency ratings here lean heavily toward Platinum and above.

Quick Comparison:

When only the absolute maximum power will suffice, the 1600-watt power supply is the best option. This power supply wattage is generally for extreme overclockers, workstation builders, or those incorporating several high-end graphics cards. Adding models that offer a 1600-watt titanium power supply efficiency level, representing the high point of current technology, provides exceptional power quality and high efficiency. Understanding 1600-watt power supply consumption is crucial for operational cost management, though the premium efficiency of a 1600-watt server power supply design often mitigates this.

Best 1200-Watt Power Supply in 2025

A 1200-watt power supply is the ideal solution for a premium build that needs serious power without jumping to the extreme 1600W range. These units, often rated as 1200-watt platinum or gold power supplies, offer tremendous power efficiency and are perfect for a powerful single-GPU setup with an overclocked CPU. It provides excellent stability and longevity.

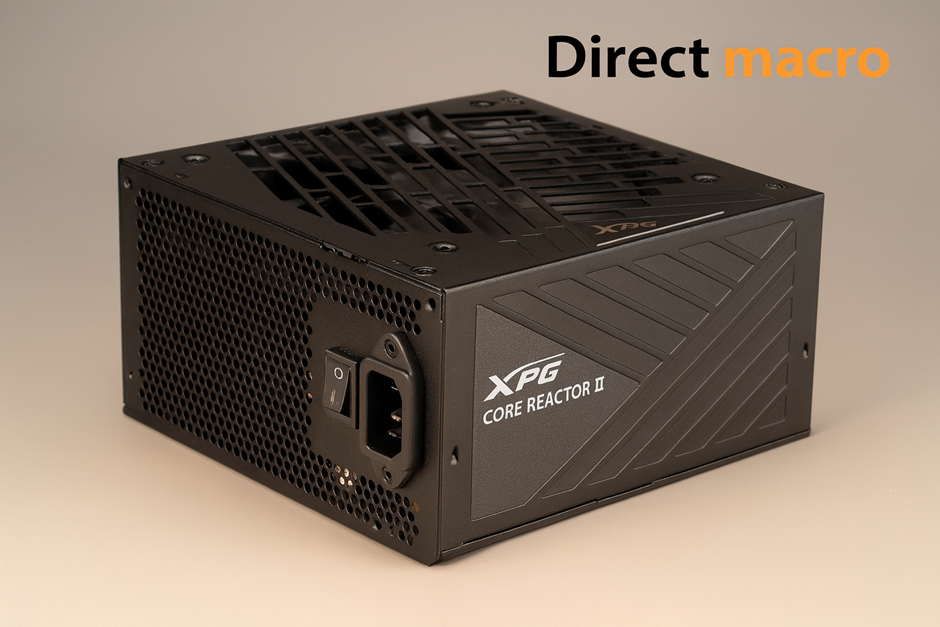

1. XPG Power Supply Core Reactor II 1200W

The XPG Core Reactor II 1200W provides high power in a remarkably small 140 mm package. This unit is smaller than others in the 1200-watt lineup. This power supply unit is also fully modular and has 80 PLUS Gold certifications that make it ideal for mid-tower systems that require excellent value and better cable management. However, due to the lack of native ATX 3.0 certification, this power supply unit may be incompatible with future GPU generations.

• Specifications: 1200W, 80 PLUS Gold, Fully Modular, Compact 140mm Depth.
• Reasons to Buy: Exceptionally small form factor for a 1200-watt pc power supply, making it highly compatible with smaller mid-towers. It offers excellent value for a Gold-certified unit.
• Reasons to Avoid: It is not natively ATX 3.0 certified, although it may support high-power GPUs through an adapter, which could limit its future-proofing.

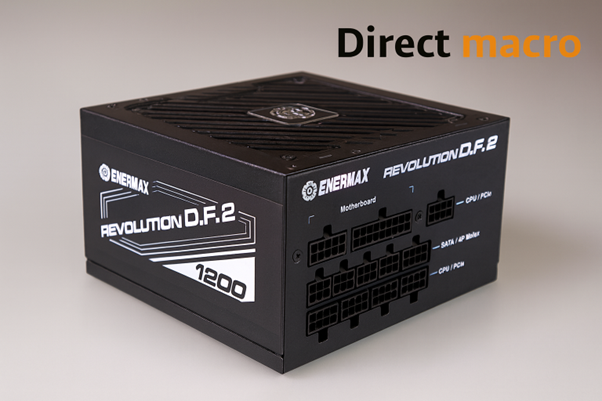

2. Enermax Revolution D.F. 2 – Power Supply – 1200 Watt

The Enermax Revolution D.F. 2 1200W has an 80 PLUS Platinum rating and the brand’s patented Dust Free Rotation (D.F.) fan for self-cleaning operation. It provides exceptional efficiency and a longer lifespan, which make it an excellent choice for high-performance rigs. While cooling is effective, the fan may become slightly audible under heavy loads.

• Specifications: 1200W, 80 PLUS Platinum, Fully Modular, Patented Dust Free Rotation (D.F.) Fan.
• Reasons to Buy: The high 1200-watt platinum power supply efficiency minimizes waste heat and noise. The D.F. fan technology helps keep the unit clean, potentially extending its lifespan.
• Reasons to Avoid: The fan noise can be slightly noticeable under very heavy load compared to some competitors.

3. Seasonic PS Vertex GX-1200 ATX3.0 1200W 80+ Gold Fully Modular

The Seasonic Vertex GX-1200 sets the benchmark for contemporary builds. It features native ATX 3.0 support and a 12VHPWR cable. It’s an excellent 1200-watt power supply for next-generation GPUs and demanding systems. It helps in boasting 80 PLUS Gold efficiency and unwavering reliability. Although it is slightly less efficient than Platinum models, its stability and build quality place it among the best 1200W PSUs in 2025.

• Specifications: 1200W, 80 PLUS Gold, Fully Modular, ATX 3.0 Native, 12VHPWR cable included.
• Reasons to Buy: The quintessential best 1200-watt power supply for 2025, offering native ATX 3.0 support to effortlessly handle the power spikes of next-gen GPUs. Excellent quality and reliability.
• Reasons to Avoid: Gold efficiency is slightly lower than Platinum options, meaning its 1200-watt power supply consumption is marginally higher than the best-rated units.

Best 1600-Watt Power Supply In 2025

If you are pursuing extreme builds, need power for dual GPUs, or need a solution for demanding workstations, a 1600-watt power supply is the best fit for your needs and is regarded as a reliable choice among available options. These units typically feature 1600-watt titanium or platinum-rated power supplies, ensuring high efficiency and stability for the most power-hungry components.

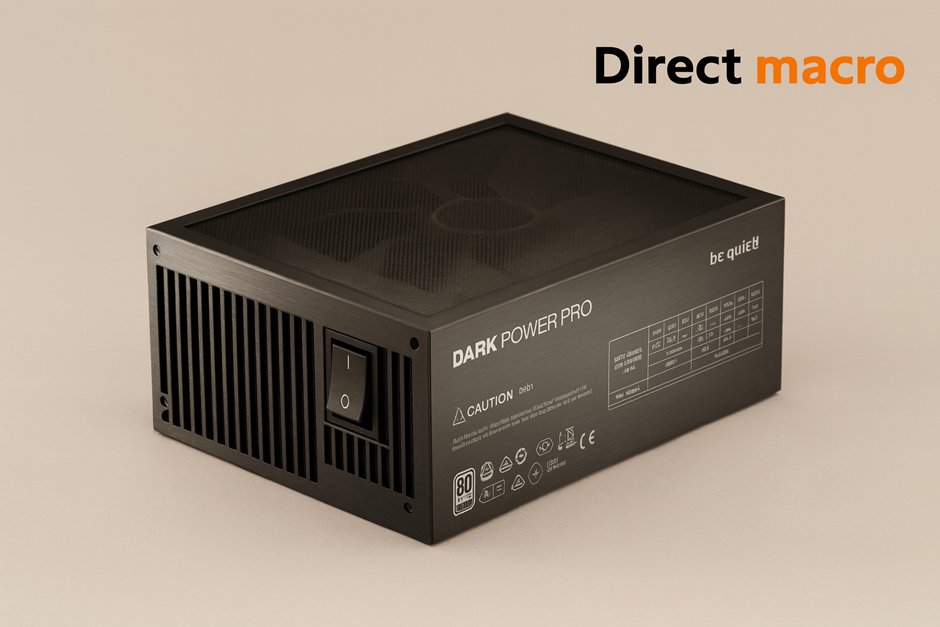

1. Be Quiet! Dark Power Pro 13 – Power Supply – 1600 Watt

Be quiet! Dark Power Pro 13 1600W stands at the pinnacle of PSU engineering with its 80 PLUS Titanium rating and whisper-quiet operation. Built with an overclocking key and full ATX 3.0 compliance, it’s perfect for advanced users demanding efficiency and silence. The only drawback is its premium price tag and semi-digital design, which may require some adjustment.

• Specifications: 1600W, 80 PLUS Titanium, Fully Modular, ATX 3.0 Native, Overclocking Key.
• Reasons to Buy: The highest possible efficiency rating (1600-watt titanium power supply) leads to minimal heat and lower long-term 1600-watt power consumption. The power supply operates with exceptional quietness.
• Reasons to Avoid: Very expensive and features a unique semi-digital design, which may be unfamiliar to some builders.

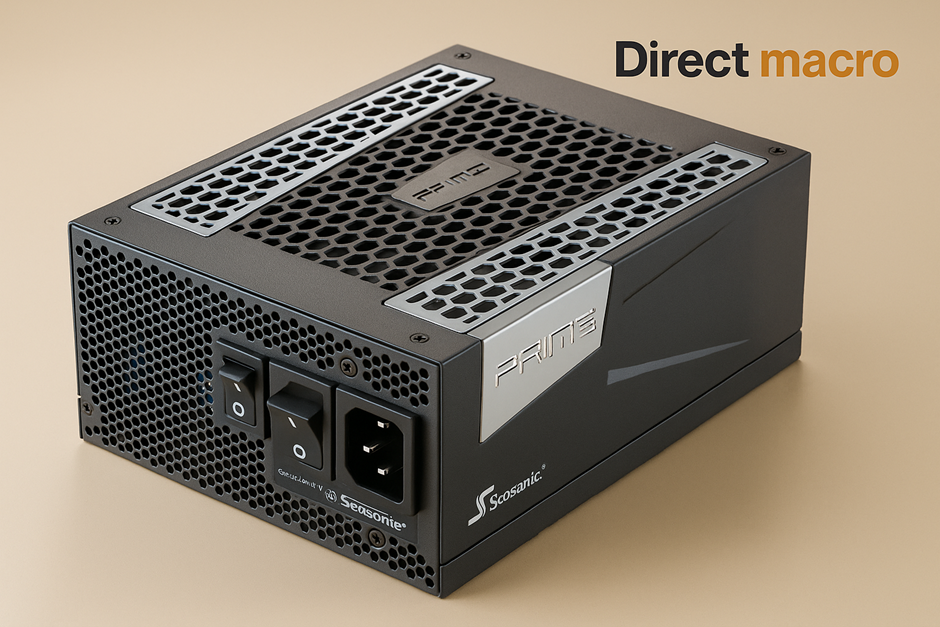

2. Seasonic Prime PX 1600-Watt 80 Plus Platinum Fully Modular ATX Power Supply

The Seasonic Prime PX 1600W, known for its precision and durability, features Platinum-rated efficiency and ultra-tight voltage regulation for consistent performance. It’s a powerful tool for users who value efficiency and build quality. However, it does not support native ATX 3.0 and costs more than Gold-rated alternatives.

• Specifications: 1600W, 80 PLUS Platinum, Fully Modular, Ultra-tight voltage regulation.
• Reasons to Buy: Legendary Seasonic reliability and build quality. The 1600-watt power supply pc performance is excellent with a Platinum rating, ensuring high efficiency under load.
• Reasons to Avoid: Does not natively support ATX 3.0 (may require an adapter for next-gen cards), and it has a higher price point than Gold-rated units.

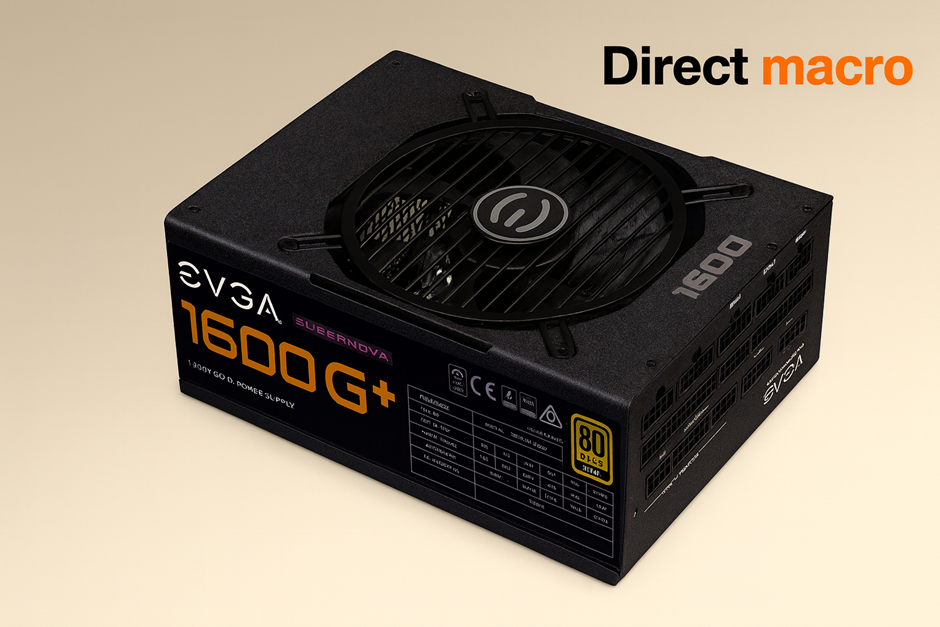

3. EVGA Supernova 1600 G+ 1600-Watts 80 Plus Gold Fully Modular Power Supply

The EVGA Supernova 1600 G+ combines massive power output with affordability, boasting 80 PLUS Gold efficiency and a 10-year warranty. It’s a reliable and reasonably priced 1600-watt power supply that’s ideal for high-end gaming and workstation setups. The only downside is that it produces slightly more heat than platinum or titanium models.

• Specifications: 1600W, 80 PLUS Gold, fully modular, strong 10-year warranty.
• Reasons to Buy: Fantastic warranty and excellent price for a high-wattage gold unit. Offers the raw power of a 1600-watt power supply with a proven track record of reliability.
• Reasons to Avoid: Gold efficiency is the lowest tier featured here, meaning it generates more waste heat than the Platinum/Titanium competition.

Performance Benchmarks of 1200W vs. 1600W Power Supply Units

When choosing between 1200-watt power supply units and 1600-watt power supply units, the decision is usually based on the system’s peak power consumption, and the 1600-watt power supply will provide more headroom. This means that the 1600-watt power supply is safer for extreme overclocking, multi-GPU setups, and other configurations with high continuous loads and brief but extremely high-power spikes.

Quick Comparison:

Final Thoughts

Most high-end gaming PCs and workstations for versatile tasks only require a 1200-watt power supply for 2025 and beyond. Gold or platinum 1200-watt power supplies provide more than enough stable power and come with ATX 3.0 certification. However, if your budget allows and you plan to combine several top-tier components and push your hardware to its absolute limits, Platinum or 1600-watt Titanium power supplies can be a generous and secure investment. Choose the wattage that offers you about 30 to 40% more power for optimal efficiency and long-term security.

To receive swift and dependable assistance for all your computer parts requirements, call us at (855) 483-7810, or get in touch with our specialized team for bulk order inquiries by completing a submission form.

FAQs

1. Which PSU is enough for RTX 5090: 1200W or 1600W?
   Based on the increasing power draw of next-generation GPUs, a high-quality 1200-watt power supply (preferably an ATX 3.0 model) should suffice. For systems that combine the RTX 5090 with a high-performance, overclocked CPU, or for maximum long-term stability and headroom, upgrading to the best 1600-watt power supply would provide superior peace of mind.
2. Which PSU has an extended lifespan?
   PSUs with higher 80 PLUS efficiency ratings (Platinum or Titanium) typically have a longer lifespan. This is because higher efficiency converts less wasted energy into heat. Less heat generation causes lower operating temperatures for internal components such as capacitors, reducing long-term stress and degradation.
3. Is a 1200W PSU compatible with all PC cases?
   The physical dimensions of the PSU, rather than its wattage, play a big role in compatibility. Most PSUs, including the 1200-watt gold power supply ones listed, use the standard ATX form factor. However, some exceptionally compact cases or specialty chassis may necessitate a smaller unit. Always compare the length/depth specification (typically between 140 mm and 180 mm) to your case’s maximum supported PSU length.
4. Can a 1200W save energy compared to a 1600W high-wattage PSU?
   Yes, but only modestly and under certain situations. The 80 PLUS certification determines efficiency, not wattage. At the same load, a 1200W Gold unit and a 1600W Gold unit waste similar amounts of energy. However, a 1600W PSU working at a 200W load is less efficient than a 1200W PSU operating at the same load. If your PC’s power use is continuously low, the 1200W may offer a minor advantage in 1200-watt power supply consumption savings.
